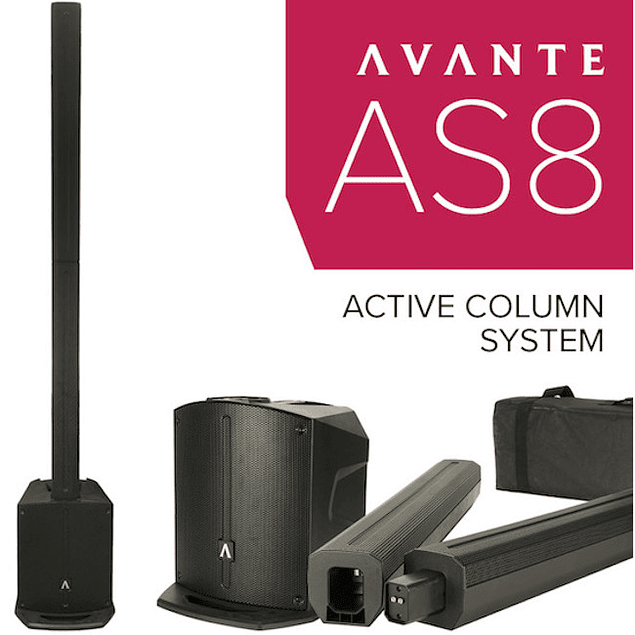

Avante Audio Achromic AS8 800W Column PA System Com Mixer E Bluetooth

Download AS8 Brochure

AMPLIFIER:

• Inputs: Two XLR/TRS combo jacks, Stereo 1/4” inputs, Stereo 1/8” inputs, Bluetooth

• Outputs: XLR balanced line output

• Power output: RMS 250W (SUB) RMS, 800W peak

• Volume: Input Gain control per channel

• EQ: Main out 2 band EQ

• LEDs: Power/Clip indicator

• Power Input: 100-240V~50/60Hz switchable 250W

• Amplifier: Class D amplifier with switching power design

ACTIVE VENTED SUBWOOFER:

• Frequency Response: 55-200Hz

• Max Output SPL: 116dB (at max. amp output)

• Impedance: 4 Ohm

• Driver: 8-inch neodymium subwoofer, 1.5” voice coil, 28 oz. magnet

• Cabinet: PP plastic

• Grill: 1.0mm steel

• Dimensions: 13.8”x16.9”x16.3” / 350x430x413mm

• Weight: 28.6 lbs. / 13 kg.

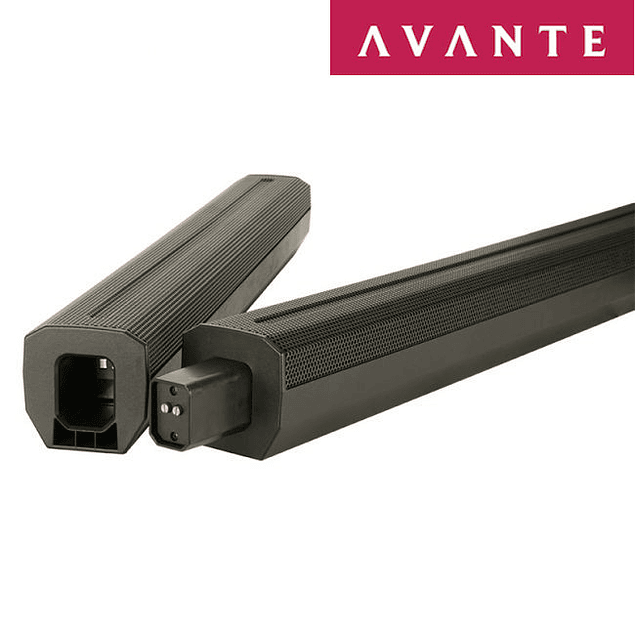

PASSIVE FULL-RANGE SPEAKER COLUMN:

• Frequency Response: 180-20kHz

• Max. output SPL: 110dB

• Impedance: 4 Ohm

• Driver: 6x 2.75-inch neodymium drivers

• Cabinet: PP plastic

• Grill: 1.0mm steel

• Dimensions: 3.8”x3.8”x34.3” / 96x96x870mm (each column)

• Weight: 11 lbs. / 5 kg. (each column)

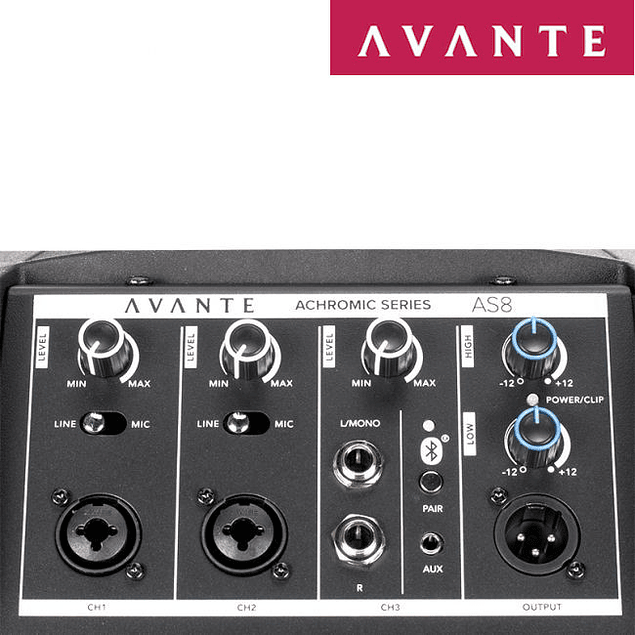

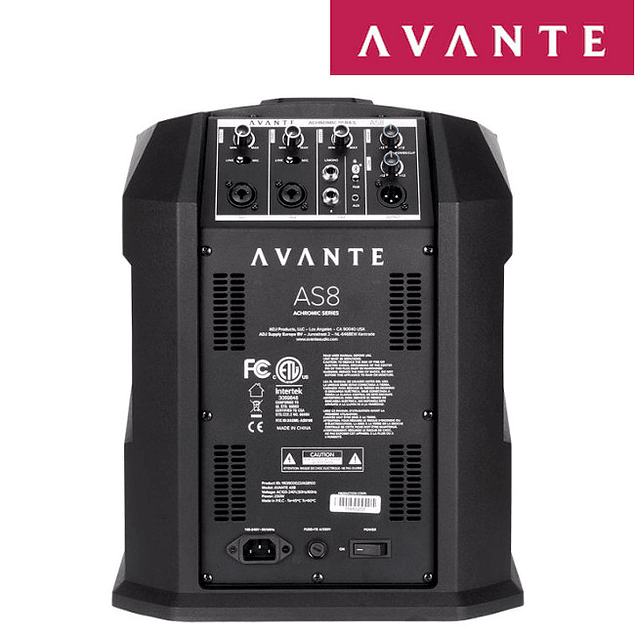

REAR PANEL:

• 4 input mixer with line out

• Mic/Line Input

• Guitar/Line Input

• 1/8” Aux Input

• Line Output

• Dual Band EQ

• BLUETOOTH® Connection

EXTENDED POSITION:

• Dimensions: 13.8”x16.9”x79.1” / 350x430x2010mm

• Weight: 50.6 lbs. / 23 kg.

COMPACT POSITION:

• Dimensions: 13.8”x16.9”x47.6” / 350x430x1210mm

• Weight: 39.6 lbs. / 18 kg.
