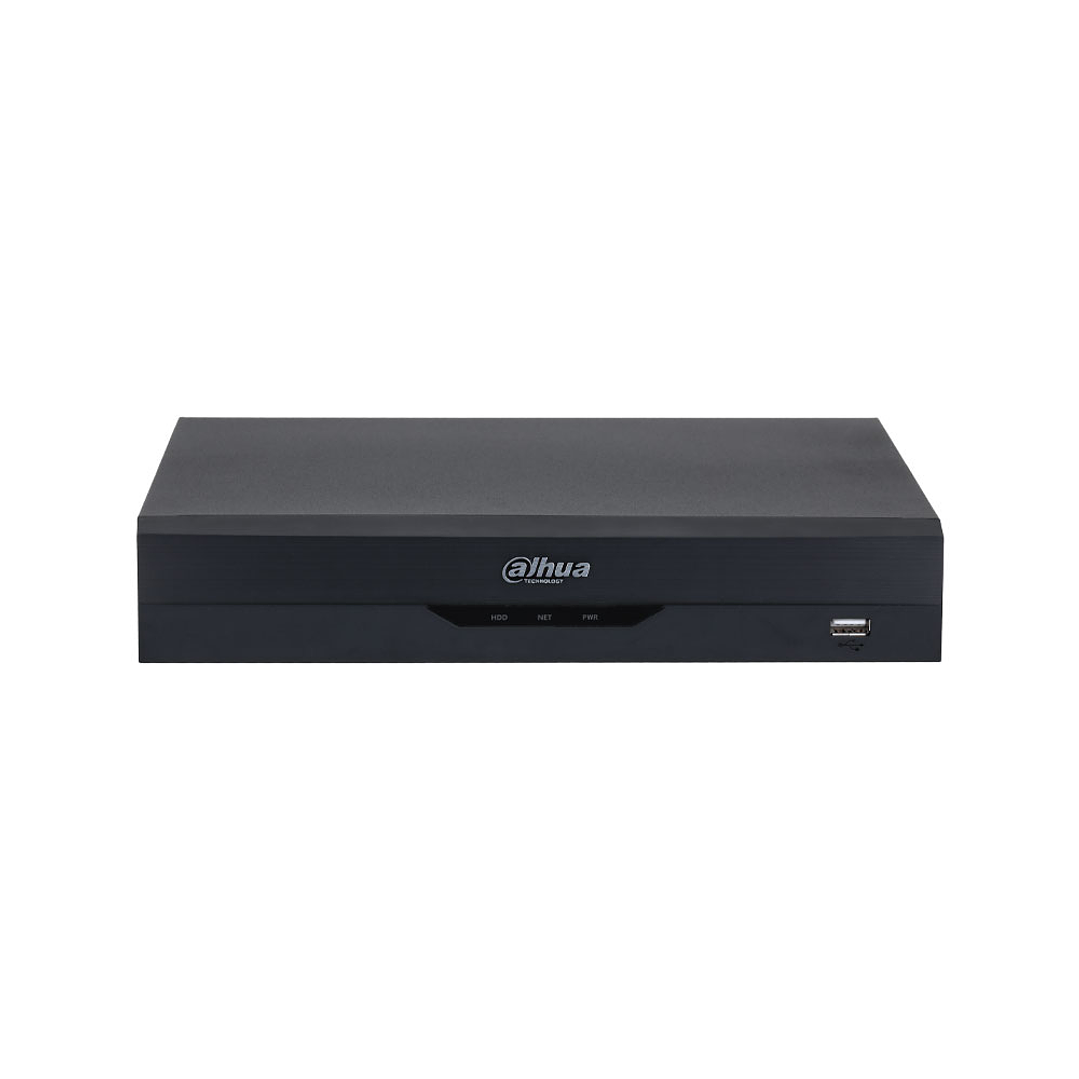

Gravador XVR 5 em 1 (hd-cvi, hd-tvi, ahd, analógico e ip) | 4 CANAIS + 2 Canais IP | 1080p | DAHUA | CCTV

Equipped with P2P technology for quick and free setup with your mobile phone, tablet or PC. You can remotely view cameras or recordings.

MAIN FEATURES:

- 5-in-1 XVR up to 8 analog channels (960H), CVI/TVI/AHD (4M-N, 1080P, 720P) + 4 IP channels (6MP)
- 5 technologies: IP cameras, HDCVI, HDTVI, AHD and analog CVBS with automatic signal recognition
- Supports viewing and playback of all channels in 1080p
- Video encoding H.265 + / H.265 / H.264 + / H.264
- 8 BNC inputs:
• HDCVI: 4M-N, 1080P, 1080N, 720P
• HDTVI: 4M-N, 1080P, 1080N, 720P
• AHD: 4M-N, 1080P, 1080N, 720P
• Analog CVBS: 960H (NTSC / PAL)
- Input for IP cameras: 4 IP inputs at 6MP (added to the BNC inputs)
- HDMI and VGA video output up to 1080p
- Output split with IP mode off: 1, 4, 8, 9
- Output split with IP mode enabled: 1, 4, 8, 9, 16
- Two-way audio: 1 RCA audio input / 1 RCA audio output
- Recording resolution: 4M-N (1280x1440), 1080P (1920x1080), 1080N (960x1080), 720P (1280x720), etc.
- Maximum input bandwidth of 48 Mbps
- Main stream: 4M-N / 1080P (1 ~ 15 ips), 1080N / 720P / 960H / D1 / CIF (1 ~ 25 ips)
- Secondary stream: D1 / CIF (1~15 ips)
- Manual, calendar, video detection, video loss, manipulation, alarm recording modes
- Recording Intervals: 1 to 60 minutes (60 minutes by default), Pre-recording 1 to 30 sec., Post-recording 10 to 300 sec.
- Independent configurable video sensor per camera (selectable in 22x18 grid), video loss detection and masking, diagnostics
- Supports video quality assessment (VQA)
- Playback of up to 8 channels
- Maximum 8-channel 4M-N/1080P decoding capability at 15 ips
- Internal capacity for 1 SATA HDD up to 10 TB (sold separately)
- Multilingual on-screen menu with new improved graphical interface
- Possibility to update the firmware of DAHUA cameras from the recorder itself
- Software and hardware watchdog
- Watermark to preserve the integrity of videos
- Third Party Support: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, etc.
- The fan can automatically turn on or off depending on the CPU temperature
- Gigabit RJ45 network port (100M)
- Network protocols: HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, DNS, IP filter, PPPoE, DDNS, FTP, Server alarm, P2P, IP Search (supports Dahua IP cameras, DVR, NVS, etc.)
- Allows up to 128 users
- Compatible with ONVIF 16.12 and CGI
- Compatible with iPhone, iPad, Android devices (App EVO and Peepall)
- SmartPSS client software (multi-connection) and browser connection (Internet Explorer, etc.)
- Sending emails with photo attached in alarm
- Send to FTP scheduled or on alarm
- Possibility to send alarm and be connected to alarm receiver software (CRA) through free AlarmSpace software
- Possibility of fixed or dynamic IP through the DDNS Evolution service
- Communication ports: 2 USB 2.0 ports
- Power supply: 12V DC, 2A (< 10W, not counting disks)
- Operating temperature: -10 ° C ~ + 55 ° C
- Operating relative humidity: 10% ~ 90%
- Storage temperature: -20 ° C ~ + 70 ° C
- Storage relative humidity: 0% ~ 90%
- Dimensions: 205 x 211 x 45 mm
- Weight: 1.1 kg (without HDD)
- Installation on the desktop
